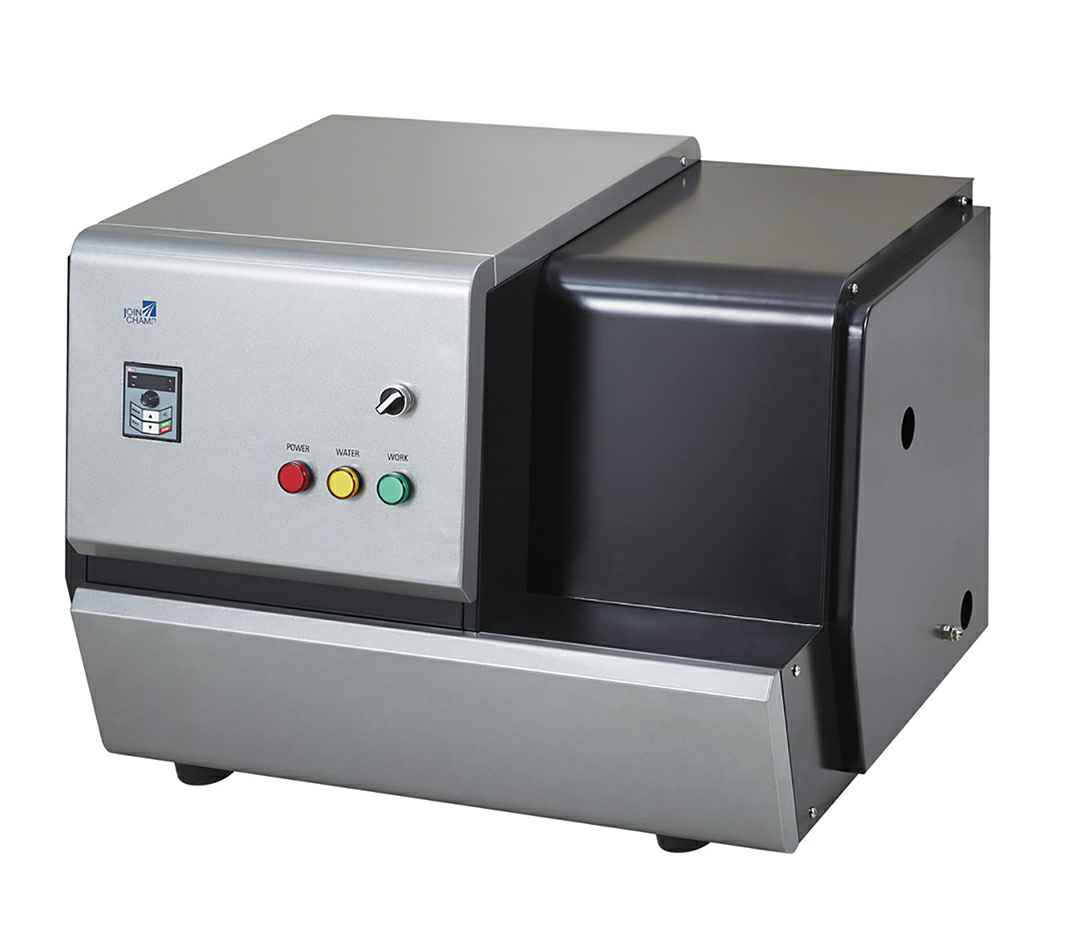

Wet suction system ZC-10

   Zhongchuang negative pressure suction system is specially designed by Zhongchuang Company for hospital departments, dental chairs in clinics or places that require negative suction. Intelligent control fault automatic protection, suction efficient cleaning. Even a 5-for-1 or 10-for-10 suction machine is a small piece of equipment. It is unmatched by traditional dry suction machines. The suction is continuous and stable, and the intensity is adjustable within the range. In order to protect the indoor environment, it is of great help to prevent cross infection. The water cup vacuum pump is also called a water ring pump. Because it also has the function of a compressor, it is also often called a water ring compressor. However, its pressure range is relatively small, only 1¦ä2¡Á105Pa gauge pressure, so it is a low-pressure compressor. The gas compression in the water ring vacuum pump is isothermal, so it can be used to pump out flammable and explosive gases. Therefore, water ring vacuum pumps are widely used in many industrial sectors such as petroleum, chemical industry, machinery, mining, light industry, medicine and food.

Learn More
  • Wet suction system ZC-10
  • Wet suction system ZC-05
  • Dry suction systemZC-F5
  • Dry suction systemZC-F3
  • Dry suction system ZC-F1
Match colors Installation diagram Optional Technical parameter

Input voltage: AC 220V

Dimensions: 7 7 0X 61 0X 53 0

Water pressure: greater than 1.0Par

model

power

KW

Max pumping volume

Ultimate vacuum

( kpa )

interface



Working water flow

¡¡m3 / h

weight

Kg

Dental chair available

(tower)

m3 /min

m3 /min

ZC-05

1.5

0.87

52



98kpa

32

0.15

55

0-6

ZC-10

3.0

1.33

80

32

0.2 5

8 5

0-10

Note: This performance is based on atmospheric pressure of 101.3 kpa , working water temperature of 15 ¡æ , and suction temperature of 20 The value of saturated air in ¡ãC , if the conditions change, the performance also changes.
